| Lugar de origen: | Shanghai, China |
| Nombre de la marca: | SHQN |
| Certificación: | ISO 9001 |
| Número de modelo: | Referencia de la figura 1502; Confirmar el fabricante de la unión y el dibujo del sello. |
| Cantidad de orden mínima: | 500 piezas |
|---|---|
| Precio: | EXW USD$0.1/pc-$2/pc |
| Detalles de empaquetado: | Bolsas de plástico + cartón |
| Tiempo de entrega: | 7-15 días |
| Condiciones de pago: | En el caso de las empresas de servicios financieros, el importe de las transferencias debe ser igual |
| Capacidad de la fuente: | 50000 piezas por semana |
| Material: | Grado NBR, HNBR o FKM; Diseño de PTFE especificado por separado. | Tamaño: | Referencias nominales de 1, 1,5, 2, 3 y 4 pulgadas; verificar las dimensiones del bolsillo del sello |
|---|---|---|---|
| Color: | Negro, rojo, morado, blanco, etc. | Dureza: | Referencia de la gama de caucho 80-85 Shore A; acordar grado y objetivo |
| Tipo: | caucho, caucho con anillo de latón, caucho con anillo inox | Temperatura: | Confirme el grado seleccionado para los medios y temperaturas de funcionamiento reales |
| Presión: | Lo determinará la asamblea sindical en pleno; sin clasificación de sello independiente | Muestra: | Disponible |
| El tiempo de entrega: | 7-15 días | En stock: | Confirme el tamaño exacto, el compuesto y la cantidad con la cotización. |
| SERVICIO: | Aduana del ODM del OEM | Paquete: | De cartón o cartón de madera |
| Cantidad mínima de pedido: | 500 Uds. | ||
| Resaltar: | 80-85 costa un sello de la unión del martillo de goma NBR,Sello de unión de martillos HNBR con garantía,sello de unión de martillo para alta presión |
||
1 to 4 Inch Nominal Figure 1502 Replacement Hammer Union Seals
Product Description
Hammer union seals form part of the fluid-transfer connection in oilfield pipe and hose systems. Shanghai Qinuo supplies replacement seal enquiries for a specified union profile. Identify the manufacturer, Figure number, nominal size and seal-pocket drawing before selecting the seal; the complete union assembly determines the permitted working pressure.
NBR, HNBR and FKM are alternative compound options, with suitability dependent on the formulation, process fluid and temperatures. Specify the actual oil, gas, additives and cleaning media. Sour-fluid and rapid-decompression service require specific material qualification. PTFE designs need separate material and geometry specifications.
Inspect the seal pocket and replacement seal for damage, contamination and correct seating. Follow the union manufacturer’s assembly procedure and inspection criteria. Use the seal dimensions and drawing revision for that exact union; an API standard number alone does not establish replacement fit.
We operate an ISO 9001 quality management system. Specify the applicable equipment requirements, seal drawing revision, compound qualification and required inspection documents with the order.
Available material, size, color and type
Material options: NBR, HNBR and FKM rubber compounds; PTFE or PU designs by an agreed material specification and drawing.
Nominal size references: 1, 1.5, 2, 3 and 4 inches. Confirm actual seal diameters, height and profile from the mating union drawing.
Color: black, white, red, green, blue, purple, accept custom color
Type: pure rubber, rubber with brass ring, rubber with stainless ring
For a pressure-duty enquiry, send the union manufacturer and Figure, nominal size, equipment working-pressure requirement and pressure/temperature conditions. Include the complete union working-pressure rating, pressure cycles, continuous and peak temperatures, and actual fluid composition with the selected seal specification. Review the specified union assembly and material together.
| Selection item | Required reference |
|---|---|
| Fit | Exact union manufacturer, Figure and seal-pocket drawing |
| Material | Approved compound grade, operating media and temperature range |
| Hardness | Target and tolerance; catalogue reference 80-85 Shore A for rubber |
| Backup | Rubber-only, brass or stainless backup arrangement as drawn |
Do not substitute a seal from a different Figure solely because the nominal pipe size matches. Confirm each ordered size and compound separately. Color does not establish compatibility or pressure capability.

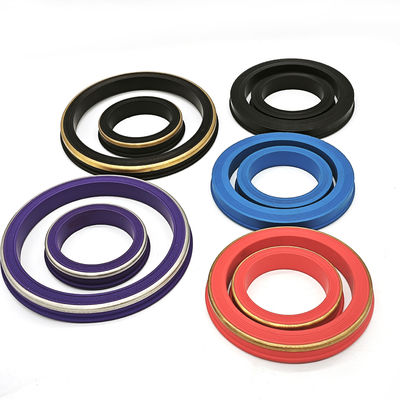

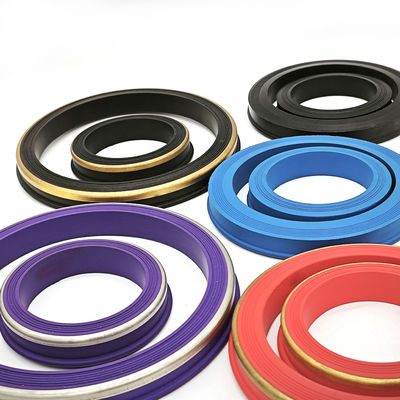

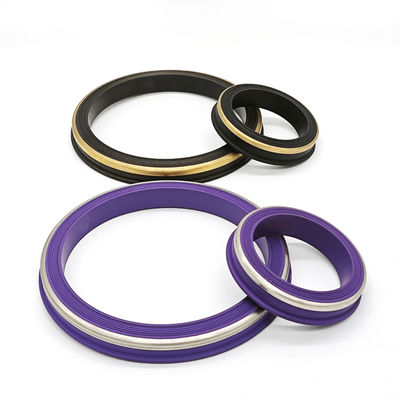

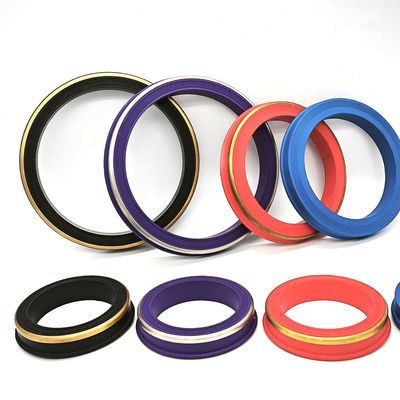

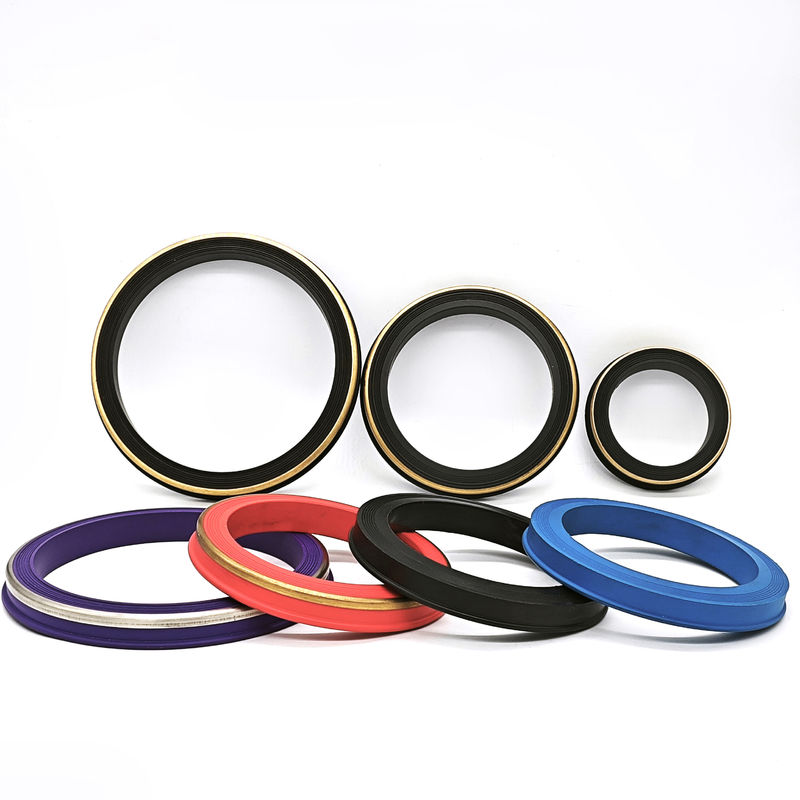

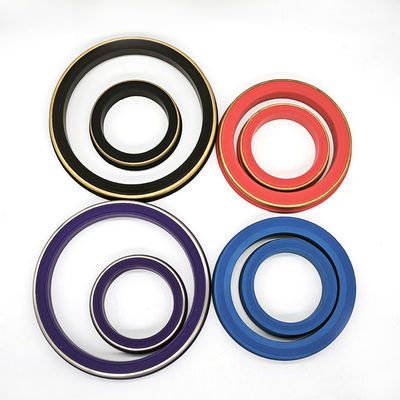

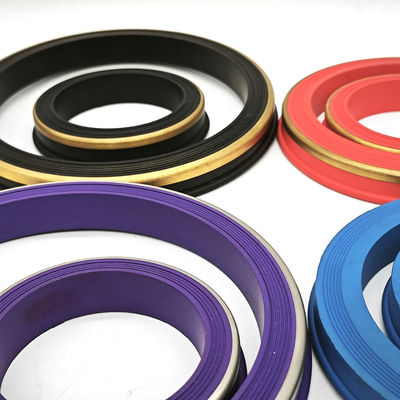

Product photo show
![]()
![]()
![]()
![]()
![]()
![]()
Company and factory introduction
![]()
![]()
![]()
![]()
![]()
![]()
Shanghai Qinuo Industry Co., Ltd supplies replacement oilfield seals under Royal Way and SHQN. Hammer union seal enquiries can be discussed from the exact union reference and seal drawing.
Qinuo provides rubber, plastic and machined-part enquiries for industrial applications. For hammer union seals, agree the profile dimensions, compound grade and inspection requirements.
Confirm tooling, order quantity, production availability and dispatch with the quotation. Keep each union Figure, nominal size and compound reference separately identified in the package.
We operate an ISO 9001 quality management system. Agree drawing revision and material and dimensional inspection requirements with the order. Include the approved compound reference, target hardness and tolerance, finished dimensions and service-specific qualification requirements.
