Product Introduction

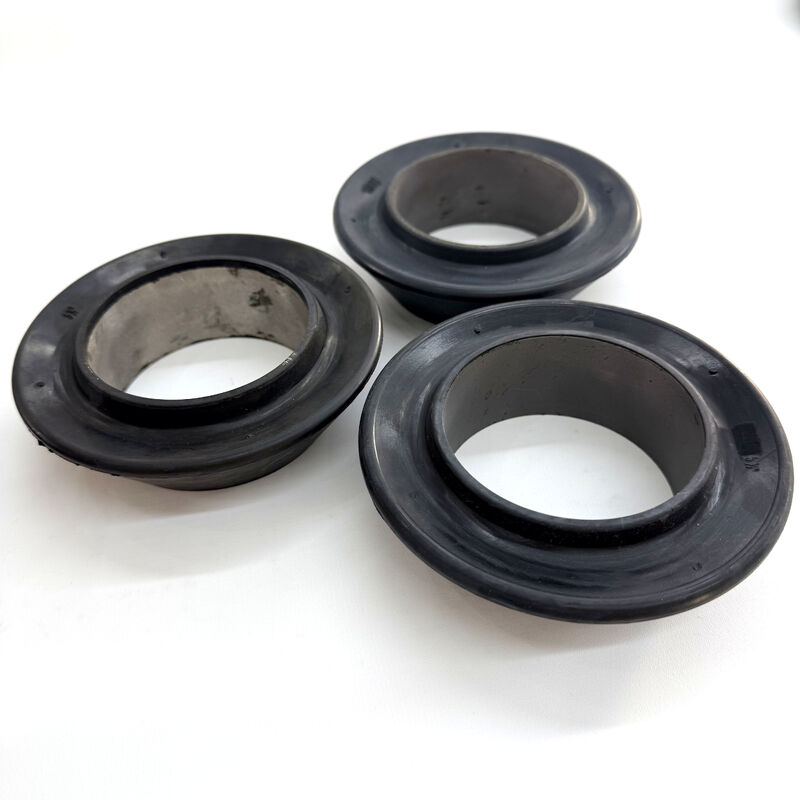

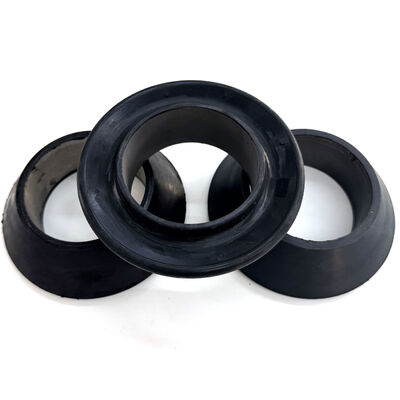

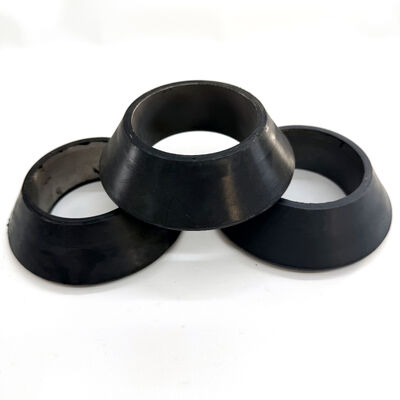

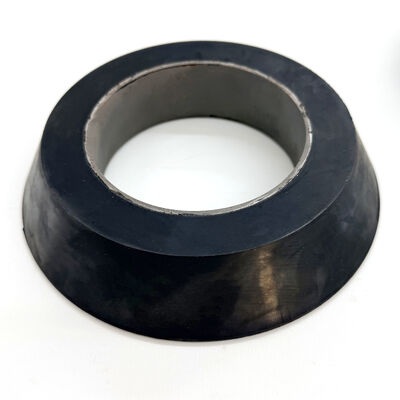

The 4.5-inch V-style oilfield swab cup is listed for well servicing in compatible casing or tubing where sand and suspended solids may be present. This configuration is identified by a flexible lip and steel-reinforced base. Selection for sand service depends on particle size and concentration, fluid, bore condition and assembly; specify these conditions when evaluating a replacement.
4.5-Inch Reference Dimensions: The legacy range table lists 4.062-inch OD × 2.495-inch ID for a standard 4-1/2-inch steel-core entry, with a separate heavy-duty entry at the same nominal size. Confirm the profile, actual dimensions and mandrel interface for the requested replacement.
Technical Specifications
| Nominal Size |
4.5 Inch |
| Style |
V-Type (Flexible Lip) |
| Actuation Type |
Fluid-Actuated |
| Reinforcement |
Steel Reinforced Base Insert |
| Material |
High-Grade Nitrile (NBR) |
Key Features and Engineering Advantages
1. Sand-Service Selection: Particle size and concentration, bore condition and lip wear affect cup selection. Provide these details for a sand-service replacement; this listing does not state a solids-handling limit.
2. Fluid-Lift Configuration: The existing listing identifies light-to-medium load use. Confirm the fluid load and complete assembly limit for the selected cup; no cup or tool-string rating is stated here.
3. Running Conditions: Follow the approved wireline-speed and fluid-entry procedure. Check for restrictions and debris; the V-profile is not a basis for increasing descent speed.
4. Steel-Reinforced Base: The listed construction includes a steel insert. Confirm insert dimensions, retention and mandrel fit from the selected drawing; no extrusion rating is listed here.
5. Cup Stack Configuration: Cup count, spacing and retention depend on the mandrel and operating procedure. Specify the complete assembly and planned load when evaluating a stack.
|
Nom. OD (inch)
|
Core and Description
|
Cup OD
|
Cup ID
|
|
1.900" ( 1-1/2" )
|
Steel Core Swab Cup
|
1.530"
|
0.902"
|
|
2-3/8" ( 2" )
|
Steel Core Swab Cup
|
1.980"
|
1.120"
|
|
2-7/8" ( 2-1/2" )
|
Steel Core Swab Cup
|
2.410"
|
1.334"
|
|
3.850"
|
Steel Core Swab Cup
|
3.850"
|
2.495"
|
|
3.900"
|
Steel Core Swab Cup
|
3.900"
|
2.495"
|
|
4-1/2"
|
Steel Core Swab Cup
|
4.062"
|
2.495"
|
|
4.610"
|
Steel Core Swab Cup
|
4.610"
|
2.495"
|
|
4.720"
|
Steel Core Swab Cup
|
4.720"
|
2.495"
|
|
4.850"
|
Steel Core Swab Cup
|
4.850"
|
2.495"
|
|
5-1/2"
|
Steel Core Swab Cup
|
4.970"
|
2.495"
|
|
7"
|
Steel Core Swab Cup
|
6.450"
|
3.500"
|
|
4-1/2"
|
Steel Core, Heavy Duty Swab Cup
|
4.062"
|
2.495"
|
Why Partner With Our Engineering Team?
ISO 9001:2015 Quality Standards: Our facility operates under a strict Quality Management System, ensuring repeatability across high-volume production runs.
In-House Tooling & Design: Our engineers assist with Design for Manufacturing (DFM), helping to refine part geometry to reduce costs and improve performance.
FAQ
Question: Why should I choose a V type cup over an RTL type for 4.5 inch casing?
Answer: Choose from the actual cup geometry and operating configuration, using the bore condition, fluid load and solids content. Do not infer a comparative load rating from V or RTL naming alone.
Question: What is the role of the steel insert in this light-load cup?
Answer: The steel insert provides a rigid foundation for the cup base. In larger 4.5 inch sizes, this reinforcement is necessary to keep the cup secured on the mandrel shoulder under hydrostatic pressure.
Question: Is the NBR material resistant to crude oil?
Answer: Confirm the NBR compound against the actual crude oil, additives and temperature. Provide fluid details when requesting a replacement.
