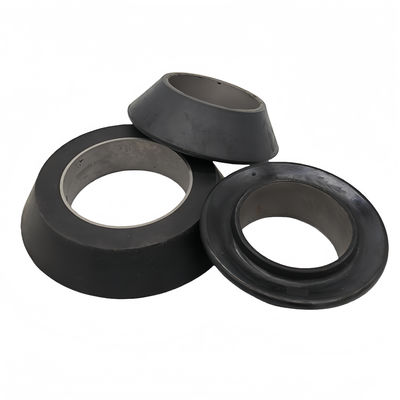

Downhole Use Oil-resistant V Type Oilfield Rubber Swab Cup With Long Service Life For Harsh Oil Extraction

Datos del producto:

Lugar de origen:	Shanghai, China
Nombre de la marca:	Royal Way
Certificación:	ISO 9001
Número de modelo:	El número de datos de la autoridad competente

Pago y Envío Términos:

Cantidad de orden mínima:	500 piezas
Precio:	1~5usd/pcs
Detalles de empaquetado:	Embalaje en cartón de 404040 cm
Tiempo de entrega:	20 días
Condiciones de pago:	T/T, Western Union, L/C, Paypal
Capacidad de la fuente:	10000 PCS por semana

Contacto

Descripción detallada del producto

Tamaño::	2 3/8" 2 7/8" 3 1/2" o en forma personalizada	Material::	de caucho +bujes de aluminio o acero
Ambiente::	Operaciones de barrido en yacimientos petrolíferos	Color:	Negro o color personalizado
Tipo de producto::	6000-10000psi	Campo de aplicación:	Muestreo de carga ligera media
Rentable:	Solución asequible y rentable	Costumbre:	cartón packing+pallet
Garantía:	5 años	Calificación de presión:	hasta 10,000 psi
Resistencia:	Resistente a la abrasión y a los productos químicos	Paquete:	cartón + bolsa de plástico

V Series Swab Cup for Sand-Laden Fluids:

The V Series Swab Cup from Shanghai Qinuo is engineered for outstanding performance in oil and gas well operations involving abrasive and sand-laden fluids. Available in light-duty and heavy-duty designs, this all-rubber cup provides an efficient and reliable seal in tubing and casing during swabbing operations. The unique upturned lip profile ensures smooth passage through tight or irregular sections of the wellbore while allowing the cup to invert easily to release heavy fluid loads, ensuring smooth operation without equipment stress.
Constructed from Qinuo’s special Frac Fluid compound, the cup offers exceptional resistance to wear, high tensile strength, and strong chemical stability, even in aggressive downhole environments. The superior abrasion resistance extends the service life of the cup, reducing replacement frequency and operational costs. Designed for flexibility across various well conditions, the number of swab cups used per tool can be customized to match the depth and pressure requirements. Qinuo’s V Series Swab Cups are trusted by oilfield professionals for their durability, precision molding, and consistent high performance.

Downhole Use Oil-resistant V Type Oilfield Rubber Swab Cup With Long Service Life For Harsh <img src=

Normal size(In)	OD(In/mm)	ID(In/mm)	Core and Description	Weight(g)
4 1/2	4.062/103.17	2.420/61.47	Steel Core Swab Cup	137
5 1/2	4.970/126.24	2.920/74.17	Steel Core Swab Cup	320
7	6.475/164.47	3.545/90.04	Steel Core Swab Cup	560

Our Swab Cups are produced from a newly developed rubber in the popular Guiberson* profile in either a nitrile or Frac Fluid compound. These cups can also be produced in other specified materials. Our cups are designed for durability and perform under the toughest conditions.

ISO9001: 2015 & SGS certificate:

Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

Downhole Use Oil-resistant V Type Oilfield Rubber Swab Cup With Long Service Life For Harsh <img src= Available types of Swab cups:

TA style:

TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Manufactured from a newly developed rubber compound, these cups provide our customers with a high quality North American product. Our special Frac Fluid compound is developed for the ultimate in durability and performance. These Frac Swab Cups are designed to perform under the toughest conditions.

Downhole Use Oil-resistant V Type Oilfield Rubber Swab Cup With Long Service Life For Harsh <img style= V style:

Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.Our special Frac Fluid compound has excellent abrasion resistance high tensile strength and outstanding resistance to chemical attack.

TUF style:

The design of the GE-TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.

NUF style:

The GE-NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditions.

Part Name	MV Style, TA style, TUF style, NUF style and V style
Environment	oil, gas, gas condensate
Available Material	FKM, , HNBR and nitrile rubber with or without Brass or Steel
