Medium-Load Swab Cup Enquiries: Profile, Core and Fluid Duty

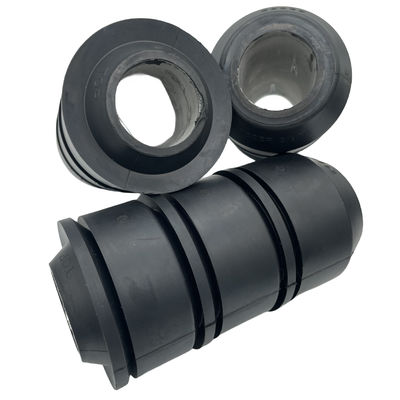

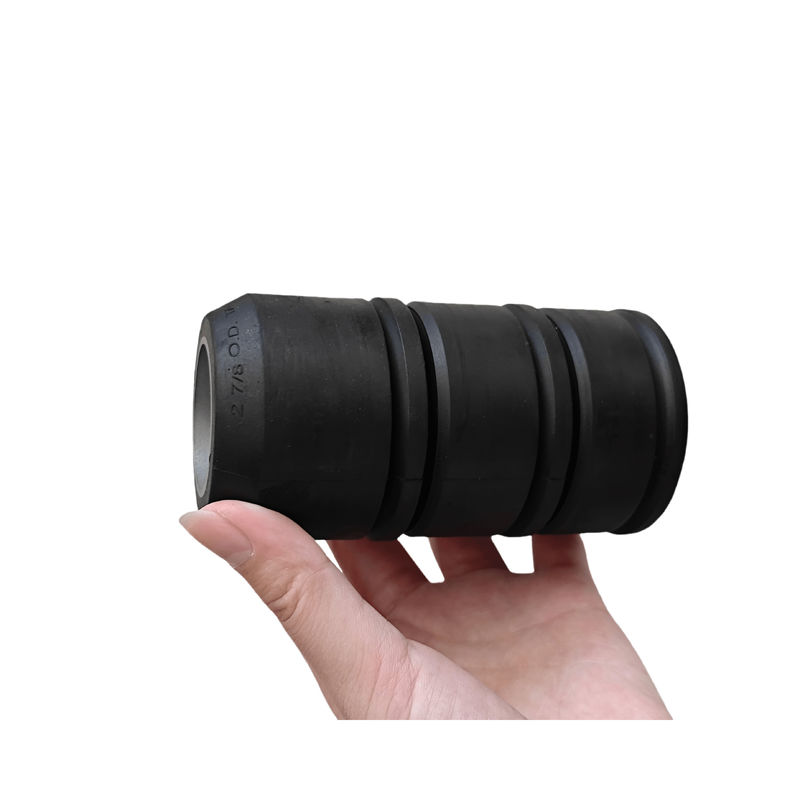

Royal Way supplies medium-load swab cup enquiries for equipment-defined oilfield swabbing. Select the exact cup profile, outside diameter and bushing bore for the tubing and mandrel. Review NBR or FKM grades for the actual fluid and temperatures. The cup alone has no independent 10,000 psi working-pressure rating.
The existing range introduces TA, V and other cup profiles. The TA description identifies a medium-load bushing-supported design; confirm the ordered profile and approved tool duty. A medium-load description is not a numerical lifting-capacity or pressure rating.
Existing nominal tubing references include 2 3/8, 2 7/8, 3 1/2 and 4 1/2 inches. Confirm tubing inside diameter, drift condition, cup outside diameter and mandrel fit before ordering. The table below retains the original catalogue dimensions; verify the selected row against the approved tool drawing.
Medium-Load Swab Cup Selection: Match the Profile to the Tool Duty
For a medium-load enquiry, provide the tool drawing, fluid column height, fluid density and permitted tool load with the operating conditions. Identify tubing inside diameter, cup OD, mandrel bore, core material and cup height. Confirm the selected design and number of cups with the tool maker’s procedure.
Include fluid composition, temperatures and sand conditions. Keep the catalogue tubing references separate from actual cup dimensions in the retained table. A different cup profile or core construction needs its own fit and duty review.
| Original nominal tubing reference (inch) |
Core and Description |
Catalogue cup OD (inch) |
Catalogue cup ID (inch) |
| 2-3/8" (2") |
Aluminum Core Swab Cup |
1.992" |
1.120" |
| 2-3/8" (2") |
Steel Core Swab Cup |
1.992" |
1.120" |
| 2-7/8" (2-1/2") |
Aluminum Core Swab Cup |
2.431" |
1.370" |
| 2-7/8" (2-1/2") |
Steel Core Swab Cup |
2.431" |
1.370" |
| 3-1/2" (3") |
Aluminum Core Swab Cup |
2.985" |
1.370" |
| 3-1/2" (3") |
Steel Core Swab Cup |
2.985" |
1.370" |
Replacement cup enquiries can be discussed from the required profile and approved drawing. Specify the nitrile or other compound grade and actual fluid exposure. Profile references do not imply original-brand manufacture or universal compatibility.

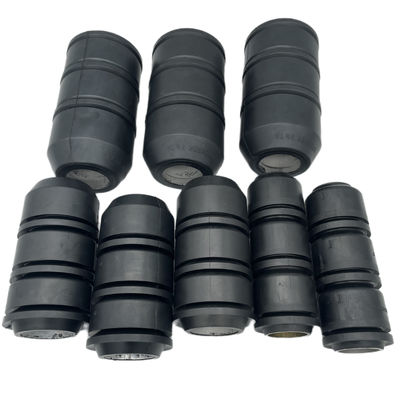

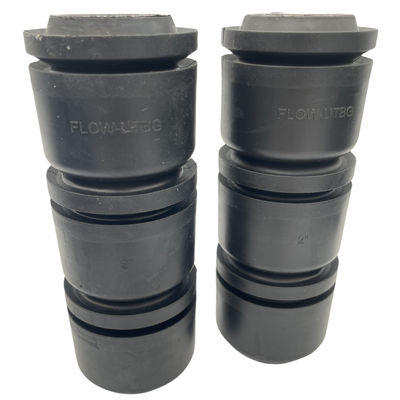

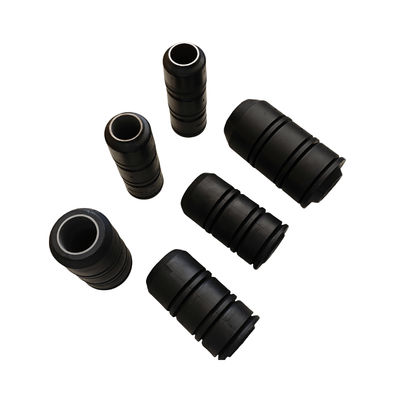

Available types of Swab cups:
TA style
TA is described in the existing range as a medium-load cup around a steel or aluminum bushing. Confirm the particular core material, cup profile and mandrel bore for the selected size. Load suitability and compound performance depend on the approved tool configuration and operating conditions.
V style:
The existing V-series description covers all-rubber lip profiles for sand-bearing fluid enquiries. Cup count, lip behaviour and load limits must follow the tool maker’s instructions. Review the selected compound for fluid, temperature and wear conditions rather than assigning universal chemical resistance.
TUF style:
The TUF-style description refers to an internally reinforced cup profile. Confirm the reinforcement, dimensions and load requirements against the tool drawing. Hot-well or rough-tubing suitability requires review of the actual compound and tubing condition.
NUF style:
The NUF-style description refers to a heavy-load rubber cup with a steel or aluminum bushing arrangement. Specify the exact profile, core material, dimensions and approved tool duty. A heavy-load description does not establish a pressure or lifting-capacity rating.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
|
Environment
|
oil, gas, gas condensate
|
|
Available Material
|
Compound and core construction by selected cup drawing; review fluid and temperatures
|
Other relative rubber products:
Packing and shipment:
- Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
- Air shipment: air port to air port or air port to door.
- Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Quality management and inspection documents:
Shanghai Qinuo supplies oilfield rubber-part enquiries under Royal Way and SHQN. We operate an ISO 9001 quality management system. For swab cups, agree the drawing revision, compound, core material and dimensional inspection requirements. Confirm tooling, production availability and delivery with the quotation.
Mould corner view for the rubber parts:
FAQ:
Q.Why Choose Qinuo industry?
We provide them with one-stop service from R & D to production to satisfy their customization needs.
Confirm the final packing, destination and dispatch schedule with the quotation. Shipping options depend on the order size and route.
Q.What is your advantage?
- Has sound and mature supporting supply chain
- Lower mold costs
- High efficiency of development and design ability and short process time.
- Cost effective and good service attitude.
- More professional export sales staff who are all know rubber processing very well.
Q.Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q.What should be inspected for a medium-load replacement cup?
Specify the cup profile, OD, core bore, height and core material on the drawing. Agree compound grade, hardness tolerance and inspection criteria for the selected tool configuration and fluid-load conditions.
Q.Can I get some samples?
Ask about sample availability for the specified medium-load cup profile, size, core and compound. Agree sample quantity, dimensional inspection, price and shipping arrangements with the quotation.
Q.Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
Q.What's the term of payment?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q.Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
